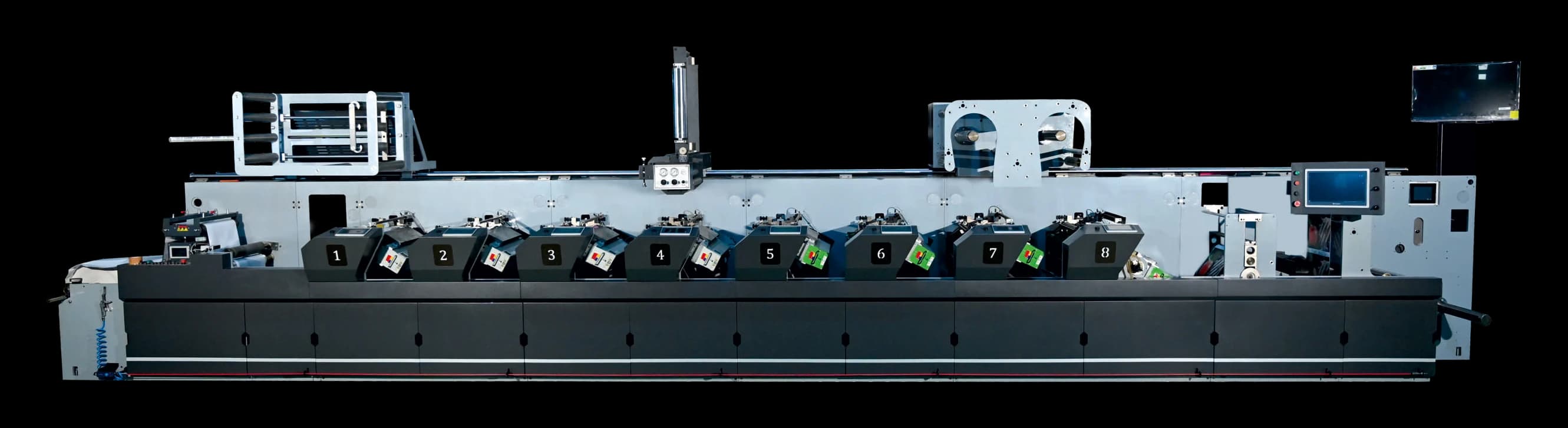

RK FMS-3S Series Flexo Label Printing Machine
Multi-Substrate Flexo Press with Triple Servo Technology
Built for precision across every substrate
The FMS-3S Series is a multi-substrate flexo press built for self-adhesive labels, unsupported paper, BOPP, PE, PET shrink film, blister foil and lami tube. Its Triple Servo Technology gives independent drive control on every unit for ultimate registration precision.
A chilled impression drum with a short paper path keeps registration stable across substrates, while the lightweight aluminium printing cylinder makes it easy to operate with high print quality.
Key Features
Independent drive control on every printing unit.
Quick job changeover with minimal waste.
Automatic re-alignment on the fly during runs.
Multi-pass capability across every station.
Short paper path for stable registration.
Touch control at the press and every station.
Instant job recalling for repeat orders.
Reduced ink consumption from the first metre.
Technical Specifications
- Web Width
- 320 / 450 / 550 / 670 mm
- Printing Colour
- 2–12 Colours
- Die Cutting
- 1–3 Stations
- Drive
- 3 Servo Per Station
- Max. Unwinding Diameter
- 900 mm
- Max. Rewinding Diameter
- 900 mm
- Substrate Range
- 12–200 Micron
- Repeat Range
- 228 to 650 mm
- Mechanical Speed
- 130 m/Min.
- Vario Print
- ± 4 mm With Same Printing Cylinder
- Plate Thickness
- 1.14 mm
- Gear Pitch
- 1/8 CP
Gallery
Optional Add-ons
Configure the FMS-3S Series to your line — every machine is built to order.
Customer Reviews
Registration holds rock-steady across PET and BOPP. Job changeovers that used to take an hour are down to minutes.
Triple servo drive and stored recipes make repeat orders effortless. Print quality is consistently excellent.
Reliable workhorse with strong after-sales support. Installation and training were smooth and professional.
Interested in the FMS-3S Series?
Tell us about your substrates, web width and colour requirements. Our team will respond with a tailored configuration and quote.
Related Machines
Frequently Asked Questions
Common questions about the FMS-3S Series and the other Flexo Label Printing machines.

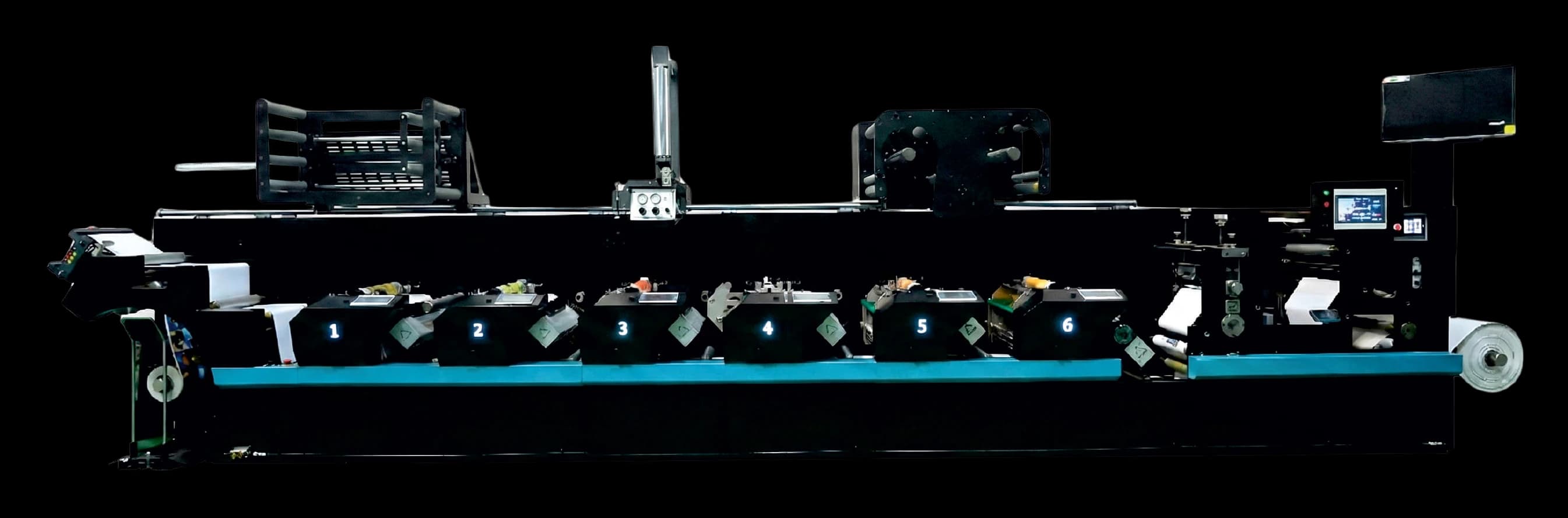

Alongside the FMS-3S Series, the Flexo Label Printing range includes the FMS-2S Series. You can open any of them from the Related Machines section above to compare configurations.
