Full servo control gives us razor-sharp registration across eight colours. UV and hot-air drying on one line means we run film and paper without slowing down.
Production Head
Flexible Packaging Converter, Gujarat
Since 1995
Made in India
25+ Countries
RK Label Printing Machinery

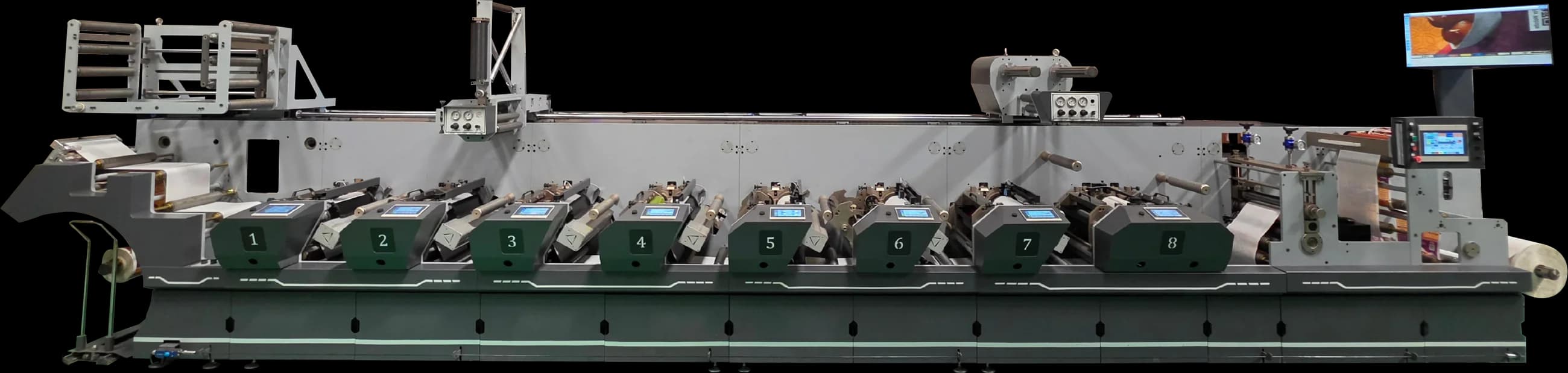

RK FMS Full Servo Flexo Printing Machine – All UV Dryer & Hot Air Dryer
Servo-Based 8-Colour Flexo Press with All-UV & Hot-Air Drying
4.8(16 reviews)SKU: FMS Full Servo
Starting from
₹85,00,000
Ex-works Ahmedabad · GST extra · Configuration-based pricing
2–12
Printing Colours
120m/min
Print Speed (UV)
310mm
Max Print Width
670mm
Web Width up to
Overview
The significance of the latest printing machine for business
A label printing machine plays a crucial role in businesses by efficiently producing custom labels on self-adhesive materials and cardstock tags. A reliable, high-precision printing machine helps maintain consistent quality, reduce production time, and lower costs — directly improving productivity and profitability.
One of the primary uses of a label printing machine is producing branding and product labels for retail, food, cosmetic, pharmaceutical and industrial goods. Modern flexo machines with full servo control deliver sharp registration, vibrant colours and tight tolerances across long runs, so every label looks the same from the first metre to the last.
By choosing the latest printing technology, businesses can scale output with confidence, take on a wider range of substrates and finishes, and respond faster to customer demand — building a real competitive edge for years to come.
Key Features
Servo-Based 8-Colour Printing
Eight-colour printing units with all-UV and hot-air drying.
Automatic Plate Registration
Automatic plate registration for sharp, repeatable colour.
Full Touch-Screen Control
Full touch-screen control system with a chiller drum.
Individual Motorized Anilox
Motorized anilox roll on each unit with 360-degree adjustment and a no-pressure one-time set.
Quick-Change Cylinders
Quick-change printing cylinders for fast job changeover.
Dual Rotary Die-Cutting
Two rotary die-cutting units for die-cut and full or sheet cutting with a conveyor belt.
Technical Specifications
- Printing Unit
- Servo Based 8 Colour Printing Unit with All UV Dryer and Hot Air Dryer
- Plate Registration
- Automatic Plate Registration System
- Chiller Drum
- Chiller Drum System
- Control System
- Full Touch Screen Control System
- Unwinding Unit
- Max Roll Ø1000 mm · 3 inch Air Shaft (75 mm) · Electronic Web Guide (Ultrasonic Based) · Slicing Table & Paper Holder · Auto Electronic Tension Controller (Powder Brake) with Load Cell Feedback (Imported) · Air Pneumatic Loading System
- Anilox Rollers
- 8 Nos Ceramic Anilox Rollers (As Per Requirement)
- Printing Cylinder
- 3 Set Printing Cylinder (As Per Requirement) · Quick-Change Cylinder & Fast Job-Change System
- Printing System
- Individual Motorized Anilox Roll System per Unit · 360-degree Adjustment per Unit · No Pressure for Every Job (One-Time Set)
- Die Cutting
- Two Rotary Die-Cutting Units (Die Cutting + Sheet or Full Cutting) with Conveyor Belt System · 1–3 Stations
- Rewinding Unit
- Max Roll Ø1000 mm · 3 inch Air Shaft (75 mm) · Auto Tension Controller (Powder Clutch)
- Speed
- 100–120 m/min (UV Dryer)
- Max Print Width
- 310 mm
- Max Print Length
- 450 mm
- Web Width
- 320 / 450 / 550 / 670 mm
- Printing Colour
- 2–12 Colours
- Drive
- 3 Servo Per Station
- Substrate Range
- 12–200 Micron
- Repeat Range
- 228 to 650 mm
- Vario Print
- ± 4 mm With Same Printing Cylinder
- Plate Thickness
- 1.14 mm
- Gear Pitch
- 1/8 CP
Gallery
Optional Add-ons
Configure the FMS to your line — every machine is built to order.
Video Monitor
Turn Bar for Reverse Printing
Cold Foil / Lamination Unit
Delam-Relam
Sheeter Stacker
Snowball Rewinding
Customer Reviews
4.8
Based on 16 reviews
Quick-change cylinders and 360-degree unit adjustment make multi-colour job changes fast. Print quality is consistently excellent.
Managing Director
Label Printing House, Maharashtra
Reliable workhorse with strong after-sales support. Installation and training were smooth and professional.
Operations Manager
Shrink Sleeve Printer, Tamil Nadu
Interested in the FMS?
Tell us about your substrates, web width and colour requirements. Our team will respond with a tailored configuration and quote.
Related Machines
Frequently Asked Questions
Common questions about the FMS and the other Flexo Label Printing machines.
Alongside the FMS, the Flexo Label Printing range includes the FMS-2S Series and FMS-3S Series. You can open any of them from the Related Machines section above to compare configurations.
