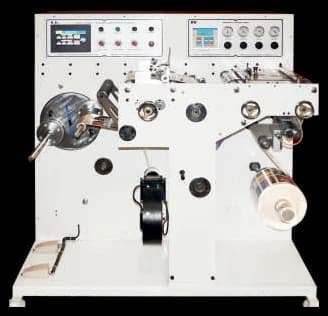

RK TR-320 Roll to Roll Slitting & Turret Rewinding Machine
Slitter-Rewinder with Self-Indexing Turret for Non-Stop Output
Non-stop slitting & rewinding for finished reels
The TR-320 is a slitter-rewinder built around a self-indexing turret. It slits printed label rolls into finished reels at up to 100 metres a minute and keeps running while reels are unloaded, so output holds steady through long jobs.
A splice table makes web joins quick and clean, while an imported ultrasonic web guide holds the tracking accurate. For converters who need high-throughput, non-stop slitting and rewinding without die cutting, the TR-320 is a dependable, productive workhorse.
Key Features
Non-stop roll changes without halting the line.
Quick, clean web joins between rolls.
Switch-selectable winding, speed-synced air shafts.
Ultrasonic web guide with PLC auto-stop counting.
Inline slitting with air-blower waste trimming.
Technical Specifications
- Paper Width
- 320 mm max
- Unwinding
- Max Roll Ø 600 mm, 3" air shaft, ultrasonic web guide, splice table
- Slitting
- Online slitting + air blower for waste trimming
- Counting
- Label & meter count, PLC auto-stop
- Control
- Touch-screen HMI
- Motors
- Unwind & Rewind 1 HP single phase with VFD
- Speed
- 100 m/min
- Rewinding
- Turret type, auto index by stepper motor, forward/reverse, 1"/1.5"/3" air shafts
- Power
- 2.5 HP, single phase
- Dimensions
- H 4.5 ft x W 4.5 ft x L 5 ft
Gallery
Optional Add-ons
Configure the TR-320 to your line — every machine is built to order.
Customer Reviews
The turret keeps our slitting line running through reel changes. Throughput on long printed-label jobs is way up since we switched.
Clean slits, accurate tracking from the ultrasonic guide and the splice table makes web joins painless. A dependable workhorse.
Reliable workhorse with strong after-sales support. Installation and training were smooth and professional.
Interested in the TR-320?
Tell us about your substrates, web width and colour requirements. Our team will respond with a tailored configuration and quote.
Related Machines
Frequently Asked Questions
Common questions about the TR-320 and the other Roll Slitting & Rewinding machines.

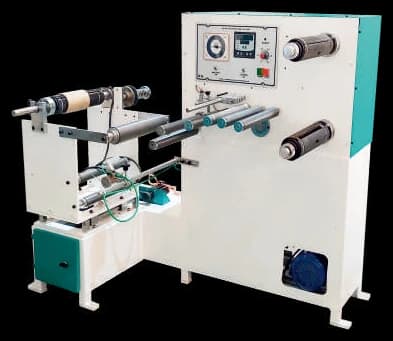

Alongside the TR-320, the Roll Slitting & Rewinding range includes the HS-320 and MS-320. You can open any of them from the Related Machines section above to compare configurations.
