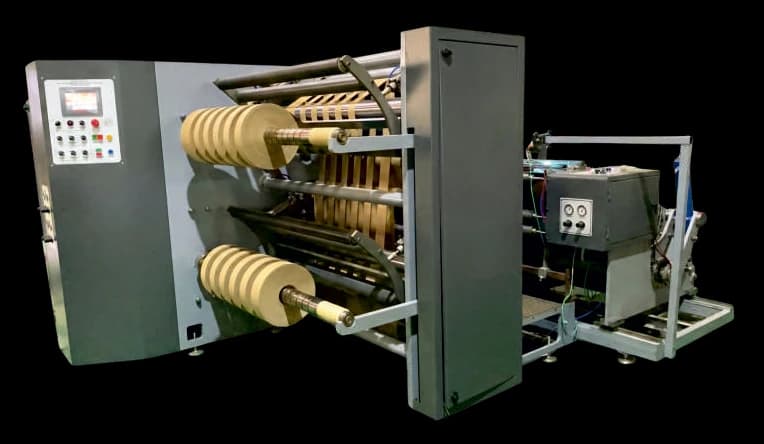

RK DPS-44 Roll to Roll Duplex Slitter Machine
Duplex Jumbo-Roll Slitter — Two Finished Rolls in One Pass
Two finished rolls in a single pass
The DPS-44" is a duplex slitter built for jumbo rolls of label stock, paper and film. It rewinds up and down at the same time, so it winds two sets of finished rolls in a single pass and pushes more output through on plain stock.
Offered in 24, 30 and 44 inch widths, it slits with shear blades and uses a web guide and tension control to keep wide rolls tracking straight and true — an efficient, high-yield slitting solution for stock houses and large converters.
Key Features
Winds two sets of finished rolls at once.
Auto loading with friction-shaft or core-less.
Shear blades with air-blower waste trimming.
Meter counting with auto-stop at set length.
Keeps wide jumbo rolls tracking straight.
Technical Specifications
- Model / Width
- RK DPS — available 24" / 30" / 44"
- Paper Feeding Width
- up to ~1100 mm (44")
- Unwinding
- Shaft-loaded Ø 800 mm with web guide
- Rewinding
- Up & Down (duplex) type, Ø 600 mm
- Slitting
- Normal (shear) blade
- Waste Trimming
- Air blower
- Counting
- Electronic meter counter with auto-stop
- Main Motor
- 3 HP 3 Phase AC variable speed
- Speed
- 70 m/min
- Power
- 5 HP, 3 Phase
Gallery
Optional Add-ons
Configure the DPS-44" to your line — every machine is built to order.
Customer Reviews
Duplex rewinding doubled our output on plain label stock — two finished rolls every pass. Handles our 44-inch jumbos with ease.
Web guide and tension control keep wide rolls tracking dead straight. A high-yield workhorse for our stock house.
Reliable workhorse with strong after-sales support. Installation and training were smooth and professional.
Interested in the DPS-44"?
Tell us about your substrates, web width and colour requirements. Our team will respond with a tailored configuration and quote.
Related Machines
Frequently Asked Questions
Common questions about the DPS-44" and the other Label Stock Slitting machines.

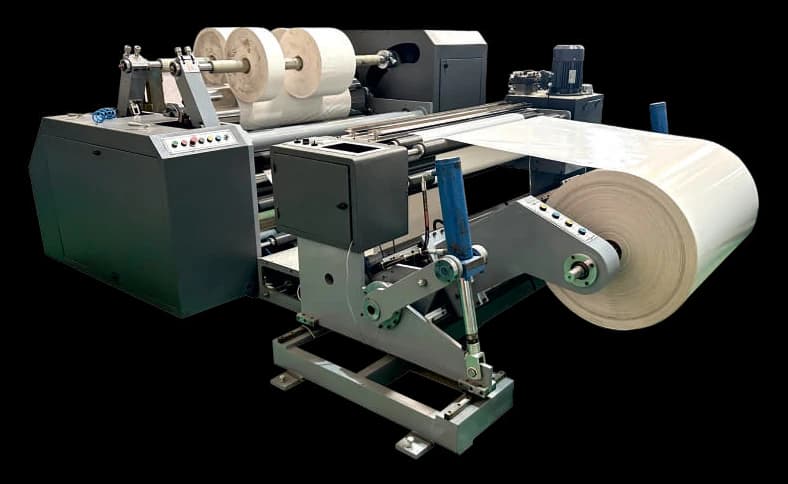

Alongside the DPS-44", the Label Stock Slitting range includes the DS-44". You can open any of them from the Related Machines section above to compare configurations.
