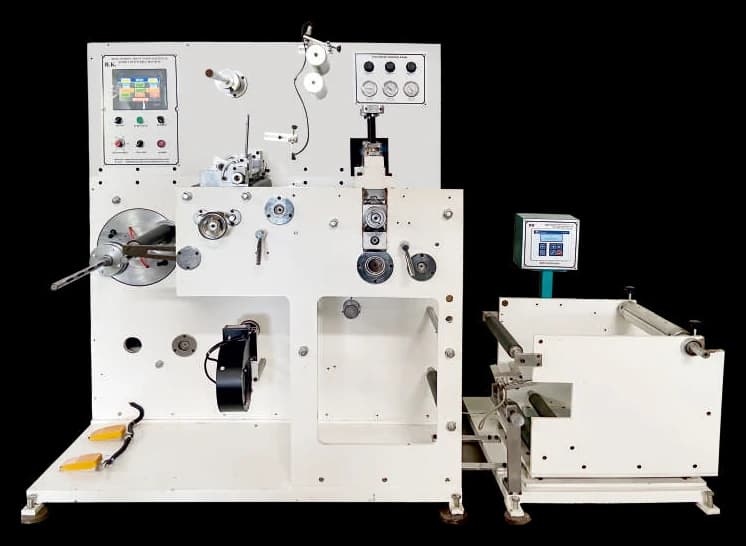

RK PTR-320 Rotary Die Cutting & Slitting Machine with Turret Rewinding
Die Cut, Slit & Auto-Turret Rewind Barcode Rolls in One Pass
Non-stop barcode roll finishing in one pass
The PTR-320 die-cuts, slits and rewinds barcode or plain label rolls in a single pass. Its rewind is a self-indexing turret, so finished rolls come off the line without stopping the machine — keeping output high on long production runs.
It runs at up to 100 metres a minute with rotary die cutting on a three-roller system, online slitting and an imported ultrasonic web guide for accurate tracking. A complete, non-stop finishing solution for barcode and product label converters.
Key Features
Die cutting, slitting & turret rewinding in one pass.
Switch-selectable winding direction.
1"/1.5"/3" shafts synchronised to line speed.
Ultrasonic web guide with PLC auto-stop counting.
Non-stop roll changes without halting the line.
Technical Specifications
- Paper Width
- 320 mm max
- Die Cutting
- Rotary die cutting unit with 3-roller system
- Unwinding
- Max Roll Ø 600 mm, 3" air shaft, ultrasonic web guide
- Slitting
- Online slitting + air blower for waste trimming
- Waste Matrix
- Online rewinding
- Counting
- Label & meter count, PLC auto-stop
- Control
- Touch-screen HMI
- Motors
- Unwind 2 HP, Rewind 1 HP single phase with VFD
- Speed
- 100 m/min
- Rewinding
- Turret type, auto index by stepper motor, forward/reverse, 1"/1.5"/3" air shafts
- Power
- 3.5 HP, single phase
- Dimensions
- H 5 ft x W 4.5 ft x L 6 ft
Gallery
Optional Add-ons
Configure the PTR-320 to your line — every machine is built to order.
Customer Reviews
The auto-indexing turret keeps the line running through roll changes — our barcode label output jumped without adding shifts.
Die cut, slit and turret rewind on one compact machine. Tracking is accurate thanks to the ultrasonic guide — great for long runs.
Reliable workhorse with strong after-sales support. Installation and training were smooth and professional.
Interested in the PTR-320?
Tell us about your substrates, web width and colour requirements. Our team will respond with a tailored configuration and quote.
Related Machines

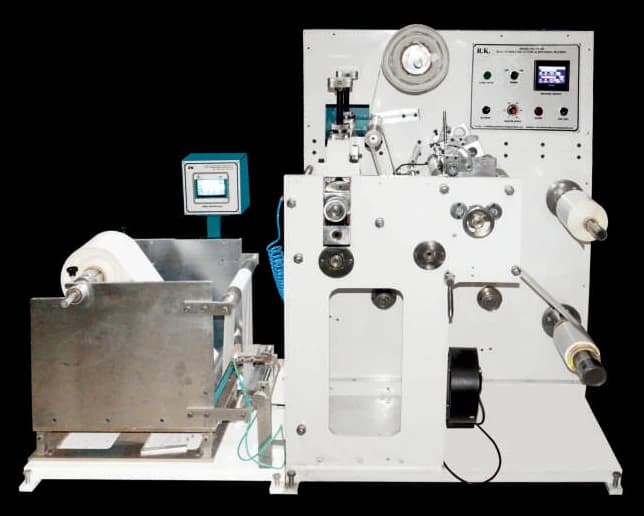

Rotary die-cutting with online slitting.
View Details →

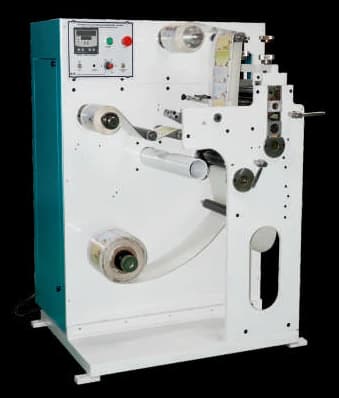

Micro rotary die-cutting & slitting for narrow web.
View Details →

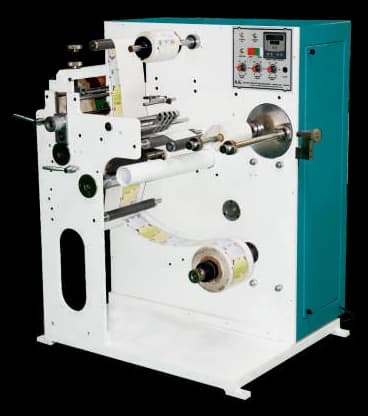

Micro rotary die-cutting & slitting with turret rewind.
