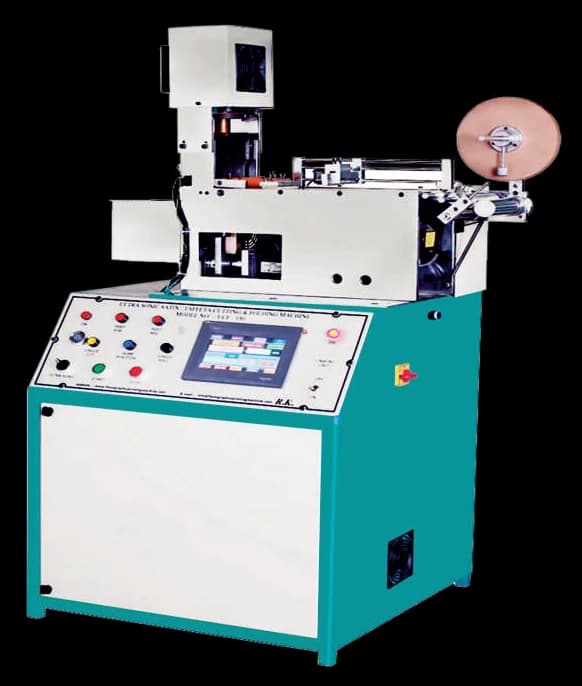

RK USC Ultrasonic Garment Tape Label Cutting & Creasing Machine
Ultrasonic Cutting that Seals Edges — No Fraying on Satin & Taffeta
Sealed-edge cutting that never frays
The USC is an ultrasonic cutter and creaser for woven garment tapes. Its ultrasonic head seals the satin or taffeta edge as it cuts, so the finished label never frays — a critical quality for wash-care and brand labels.
A servo feeds the tape and reads either a set length or a print mark to place each cut accurately, and the machine manages around 5,000 cuts an hour. Compact and single-phase, it is the natural finishing partner to a garment-label press.
Key Features
Seals satin/taffeta edges so labels never fray.
Length and print-mark feeding modes.
Crease and fold finished labels in line.
High-throughput cutting for production runs.
Small footprint, runs on single-phase power.
Technical Specifications
- Feeding Size
- 100 mm
- Feeding System
- Electronic servo with length & print-mark mode control
- Cutting Head
- Ultrasonic, for satin tape label cutting
- Supply
- 230V AC, single phase
- Speed
- 5,000 cuts/hr
- Power
- 2 HP, single phase
- Dimensions
- H 5 ft x W 2.5 ft x L 3.5 ft
Gallery
Optional Add-ons
Configure the USC to your line — every machine is built to order.
Customer Reviews
Edges come out perfectly sealed — zero fraying on satin tape. It's the ideal finishing partner to our garment-label press.
Servo feeding with print-mark mode places every cut accurately. Throughput is excellent and the creasing option is a bonus.
Reliable workhorse with strong after-sales support. Installation and training were smooth and professional.
Interested in the USC?
Tell us about your substrates, web width and colour requirements. Our team will respond with a tailored configuration and quote.
Related Machines
Frequently Asked Questions
Common questions about the USC and the other Rotary Garment Label machines.

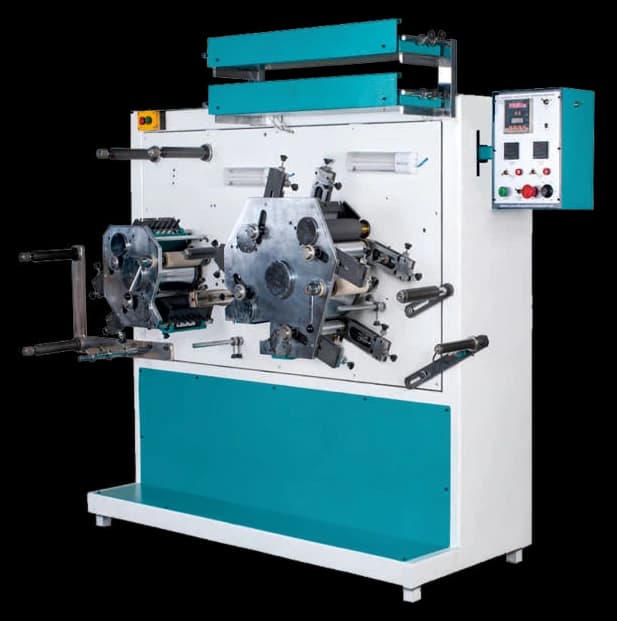

Alongside the USC, the Rotary Garment Label range includes the GRF 150 4+2. You can open any of them from the Related Machines section above to compare configurations.
