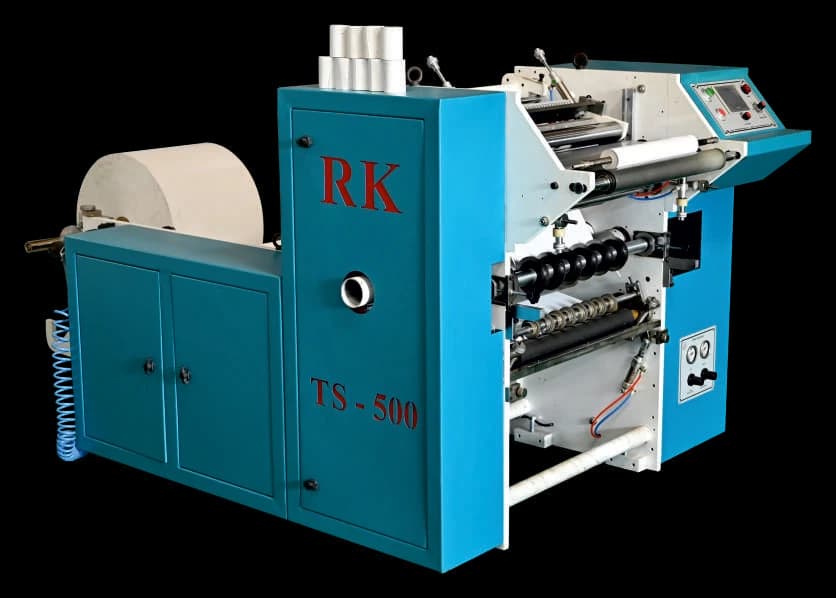

RK TS-500 Thermal Slitter Rewinder (POS Roll) Machine
High-Speed POS Roll Slitter — Till, ATM & Billing Rolls at 165 m/min
Fast, square POS-roll production
The TS-500 is a high-speed slitter-rewinder for POS rolls. It cuts jumbo thermal paper down to till, ATM and billing rolls at up to 165 metres a minute, using a ten-set top-and-bottom rotary cutter for clean, square cuts.
Reels load on an air shaft with pneumatic loading, an ink roller marks the roll ends automatically, and the PLC and drive are genuine Schneider. Handling thermal paper up to 100 GSM, it is a fast, reliable production machine for POS-roll converters.
Key Features
High-speed thermal POS-roll slitting throughput.
Ten-set rotary cutter for clean, square cuts.
Marks roll ends automatically with an ink roller.
Pneumatic loading with drum-brake tension.
Genuine Schneider PLC & VFD with meter counter.
Runs thermal stock up to 100 GSM cleanly.
Technical Specifications
- Model
- RK TS-500
- Max Paper Width
- 500 mm
- Unwinding
- Max Roll Ø 1000 mm, 3" air shaft, mechanical drum-brake tension, air pneumatic loading
- Cutting
- Rotary blade, top & bottom cutter (10 set)
- Waste Trimming
- Air blower collection
- Marking
- Automatic ink-marking system with ink rubber roll
- Rewinding
- Max Roll Ø 400 mm, manual shafts 13/19/25.4 mm (3 each)
- Main Motor
- 2 HP 3 Phase AC variable speed
- Controls
- VFD & PLC (Schneider), meter counter with auto-stop
- Speed
- 165 m/min
- Substrate
- Thermal paper up to 100 GSM
- Power
- 3.5 HP, 3 Phase
- Dimensions
- H 5 ft x W 6 ft x L 8 ft
Gallery
Optional Add-ons
Configure the TS-500 to your line — every machine is built to order.
Customer Reviews
Runs our till and ATM rolls at full 165 m/min all shift. The 10-set rotary cutter gives perfectly square cuts every time.
Schneider PLC and VFD make it rock-solid, and the auto ink-marking saves us a manual step. Excellent POS-roll machine.
Reliable workhorse with strong after-sales support. Installation and training were smooth and professional.
Interested in the TS-500?
Tell us about your substrates, web width and colour requirements. Our team will respond with a tailored configuration and quote.
Related Machines

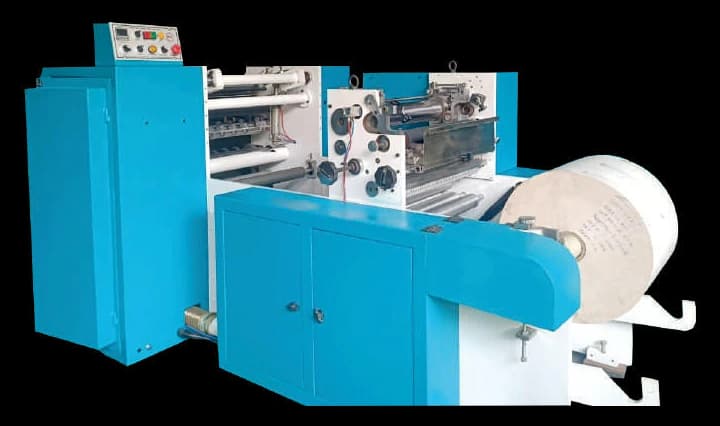

POS-roll slitter with single-colour inline flexo printing.
View Details →

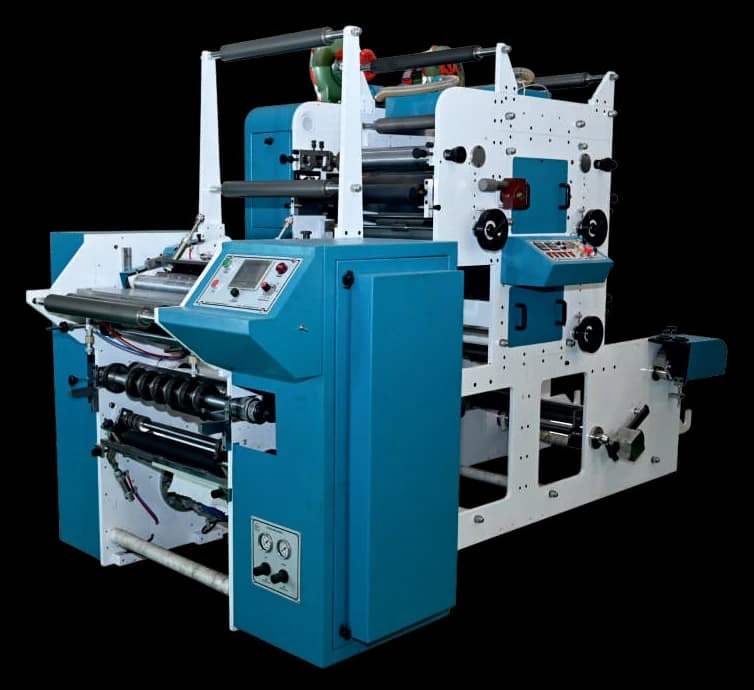

POS-roll slitter with two-colour inline flexo printing.
