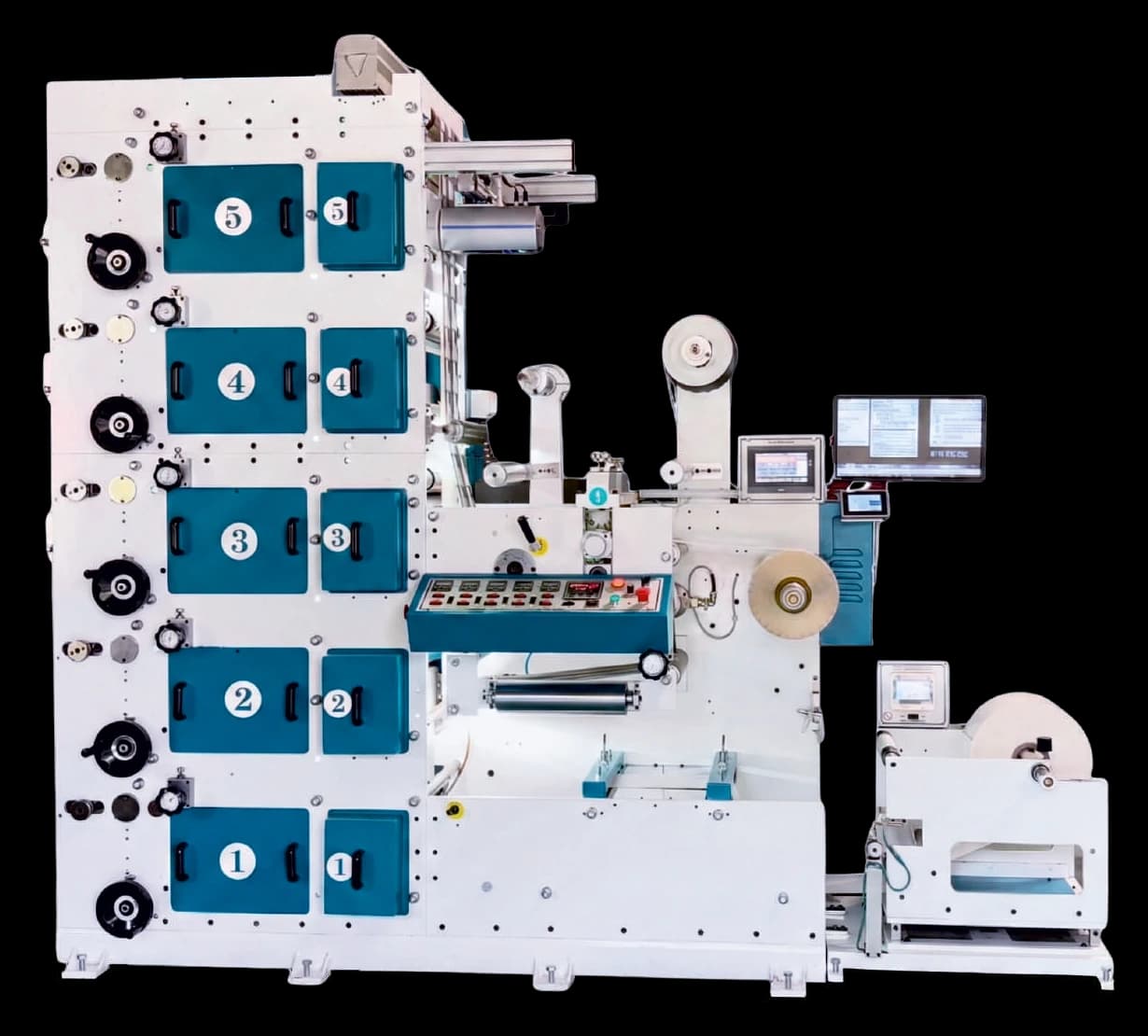

RK RKF-5 Tower Flexo Label Printing Machine
Five-Colour Vertical Tower Flexo Press with Inline Rotary Die Cutting
A space-saving tower built to grow with you
The RKF-5 is the five-colour version of RK's tower-type flexo label press. It prints self-adhesive labels, stickers and film and die-cuts them on the same pass, with the print units stacked vertically to save valuable floor space. Each unit carries its own motorised anilox roller and adjusts through a full 360 degrees, while an imported ultrasonic web guide keeps the web tracking straight.
The same platform can be built from one up to seven colours, with one to three rotary die-cutting stations at the end of the line — making it a flexible, space-saving choice for growing label converters.
Key Features
Stacked print units for a much smaller footprint.
Scale the same platform from one to seven units.
Dedicated motor on the anilox roller of every unit.
Full 360-degree adjustment on every print unit.
Keeps the web tracking dead straight at speed.
Load-cell feedback holds tension consistent.
1–3 rotary die-cut stations on the same pass.
Fast cylinder swaps for rapid job changeover.
Secure, even roll grip on unwind and rewind.
Technical Specifications
- Web Width
- 320 / 450 / 550 / 1100 mm
- Printing Colours
- 1 to 7 Colours
- Max. Unwinding Diameter
- 600 mm
- Max. Rewinding Diameter
- 600 mm
- Max. Speed
- 60–70 m/min
- Die Cutting
- 1 to 3 Stations
- Tension Controller
- Automatic with Load Cell
- Web Guide
- Ultrasonic Based
- Registration
- 360°
- Dryer
- IR or UV (Optional)
- Repeat Length
- 200–430 mm
- Anilox Roller
- Individual Motors
- Air Shaft
- Multi-Bladder
Gallery
Optional Add-ons
Configure the RKF-5 Colour to your line — every machine is built to order.
Customer Reviews
The vertical tower footprint freed up half our floor. Print-and-die-cut on one pass has cut our turnaround dramatically.
We started at three colours and added two more units later — the scalable tower platform made the upgrade painless.
Reliable workhorse with strong after-sales support. Installation and training were smooth and professional.
Interested in the RKF-5 Colour?
Tell us about your substrates, web width and colour requirements. Our team will respond with a tailored configuration and quote.
Frequently Asked Questions
Common questions about the RKF-5 Colour and the other Tower Flexo Printing machines.
The RKF-5 Colour runs at up to 60–70 m/min (max speed).
