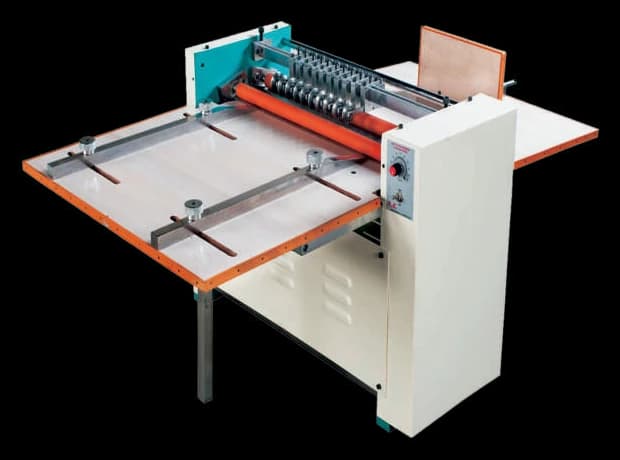

RK MHC Manual Half Cutting, Perforating & Creasing Machine
Compact Hand-Fed Half-Cutter, Perforator & Creaser in One
Low-cost half-cut, perf & crease in one
The MHC is a hand-fed machine for half-cutting, perforating and creasing release paper, PVC, foil and BOPP up to 24 inches wide. It carries a ten-gun rotary blade set with a minimum 16 mm gap between blades, and counts sheets with an automatic stop.
Small, simple and cheap to run, it is the ideal low-cost finishing machine for small converters and in-house jobs that need clean half-cuts, perforations or creases without a large investment.
Key Features
Three finishing functions in one machine.
Ten rotary-blade guns with adjustable gaps.
Handles a wide range of label substrates.
Counts sheets and stops at the set count.
Small footprint, low-cost, easy to operate.
Technical Specifications
- Paper Feeding Size
- 24"
- Release Paper
- Min 40 GSM – Max 150 GSM
- Blade Set
- 10 rotary blade gun set
- Min Two-Blade Gap
- 16 mm
- Main Motor
- 0.5 HP AC variable speed
- Counting
- Sheet counting with auto-stop
- Power
- 0.5 HP, single phase
- Dimensions
- H 2 ft x W 2.5 ft x L 1.2 ft
Gallery
Optional Add-ons
Configure the MHC to your line — every machine is built to order.
Customer Reviews
Brilliant value — half-cut, perf and crease on one little bench machine. Pays for itself fast on in-house jobs.
Handles release paper, PVC and foil with clean half-cuts. Simple to set the 10-gun blades and the auto-stop counter is handy.
Reliable workhorse with strong after-sales support. Installation and training were smooth and professional.
Interested in the MHC?
Tell us about your substrates, web width and colour requirements. Our team will respond with a tailored configuration and quote.
Frequently Asked Questions
Common questions about the MHC and the other Half Cutting machines.
The MHC starts from ₹95,000 and is made to order. Ex-works Ahmedabad · GST extra · Configuration-based pricing. Contact us for a configuration-based quote.
